ULTRAK L20 - Multi-Lane Timer

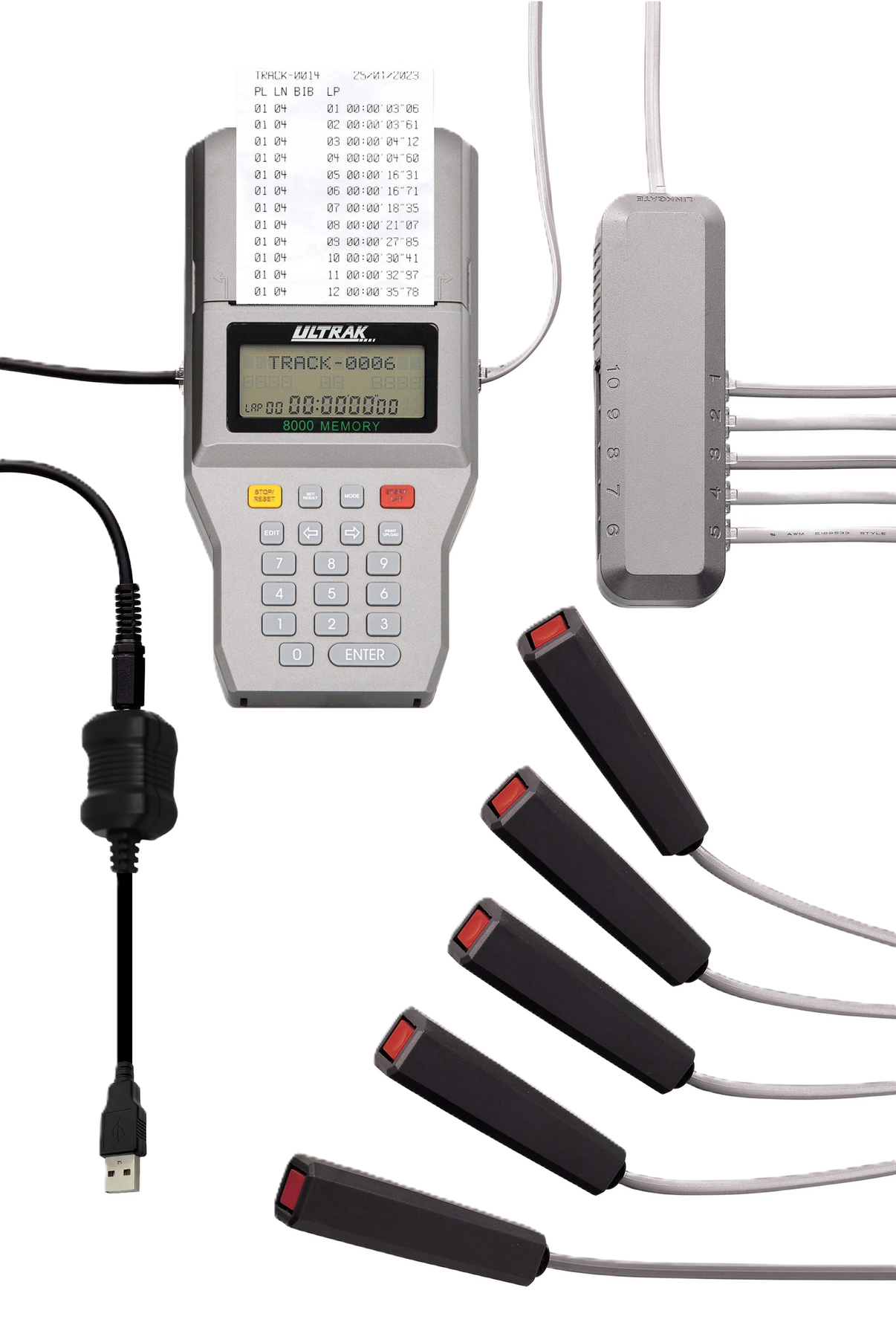

The Ultrak L20 is the next generation of our popular multi-lane timer.  With an updated printer module and a new case, it operates exactly the same as the Ultrak L10. The Ultrak L20 can be used to time track races with up to 10 lanes as well as road races (cross country, 10K's, marathons, etc.) with up to 8,000 participants. A linkgate is provided which connects the ten lane buttons to a separate unit, eliminating tangled wires to the lane timer itself. Four digit bib numbers can be pre-assigned to lanes in track mode and entered at the finish for road races. Data can be uploaded to a PC or printed out during or after an event for later review. The Ultrak L20 is also compatible with Hy-Tek, RunScore, Easy Meet Manager and other software programs!

Road Race (Cross Country) Mode

• 8,000 memory for individual finishers in single or multiple events
• Store multiple events in memory for later review or printing
• Four digit bib numbers
• Bib number entry at finish or add/edit after event
• Four digit place counter
• Automatic print out during event
• Final result print out after event
• Single and multiple start times
• Up to 10 waves in multiple start race

Track Race Mode

• Up to 10 lap/split lane buttons
• Linkgate allows single wire to lane timer, eliminating tangled wires
• 8,000 dual split memory for single or multiple events
• Store multiple events in memory for later review or printing
• Four digit place counter
• Pre-entry of bib and lane numbers
• Bib number add/edit after event
• Two digit lap counter
• Test mode for verification of lane set-up

Built-In Printer

• Prints 20 digits, 1 lap/split record per line
• Printing speed of 1 lines per second
• Automatic printout of date, run number and record type (track, road or multiple)
• Pause printing function allows for paper change
• Powered by rechargeable internal battery; recharged by USB

Other Features

• Includes Windows interface with data processing
• Compatible with Hy-Tek, RunScore, Easy Meet Manager and other programs
• Time and calendar
• Basic set includes one lane button; additional lane buttons sold separately
• L-20 Instructions

Instructions for old Ultrak L10
